Portable Hardness Tester

portable hardness testers pht-2500d portable hardness testers pht-2500d

Model No. PHT-2500D

State of the art, digital Portable Hardness Tester is a menu driven, multi-functional unit with extended memory and RS 232 output capabilities. This unit can perform Hardness tests that easily convert to every popular Hardness scale, including Rockwell, Brinell, Vickers, Shore, etc. Protective leather wrist strap included!

Simply put, it's the most versatile, accurate, portable Hardness Tester on the market today!

portable hardness testers
Operation:
  • Load the impact body
  • Place the impact body on your test piece
  • Push the button to begin testing and obtain reading
Standard Accessories:
  • Base instrument
  • Impact device D
  • Calibrated test block
  • Custom carry case
  • Cleaning brush
  • Operation manual
Optional Accessories:
  • Micro printer
  • Impact devices; DC, D+15, DL, G, C
  • Software
  • Special support rings
  • Printer cable
Functions:
  • Easy to read menu operation
  • Large LCD display with back light
  • RS 232 interface
  • Automatic conversions to: Brinell, Rockwell, Vicker and Shore hardness
  • Automatic mean value
  • Data storage capacity
Specifications:
  • Accuracy: +/- 0.5% (referred to L=800, repeated accuracy: +/- 4L units)
  • Measuring range: 200-960 HL
  • Materials: steel & cast steel, alloy tool steel, stainless steel, grey cast iron, spheroidal iron, cast aluminum, brass, bronze, wrought copper alloy.
  • Battery type: AAA alkaline (2)
  • Operating temperature: 5-104 degrees F
  • Dimensions: 108 x 62 x 25mm
  • Weight: 230 grams
portable hardness testers

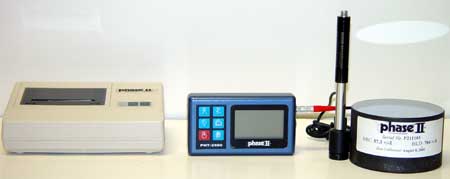

portable hardness testers * Optional with Micro-Printer

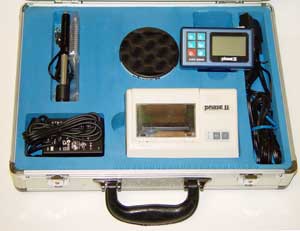

portable hardness testers * PHT-2550 kit includes optional printer

portable hardness testers

Special Application Impact Devices

Impact Device D
Universal standard device:
Use for the majority of hardness testing assignments
Impact Device DL (not shown)
Needle front section .109” diameter x 1.96” length
Measurements in extremely confined spaces
Impact Device G
Enlarged test tip: For use on solid heavy components such as; rough castings and forgings. Brinell only.
Impact Device DC
Extremely short impact device
Used for very confined spaces such as holes, cylinders, internal measurements
Impact Device D+15
Slim front section with coil set back.
Hardness measurements in grooves, recessed surface.
Impact Device C
Reduced impact energy
For testing case hardened or thin walled components


Impact Device Specifications for PHT-2500D


Impact devices D/DC/DL D+15 C G
Impact energy 11Nmm 11Nmm 3Nmm 90Nmm
Mass of the impact body 5.5g 7.8g 3.0g 20g
  DL: 7.2g
Test tip
* Hardness 1600HV 1600HV 1600HV 1600HV
* Diameter 3mm 3mm 3mm 5mm
* Material   Tungsten Tungsten
*   carbide carbide
Impact device
* Diameter 20mm 20mm 20mm 30mm
* Length 147/86mm 162mm 141mm 254mm
* Weight 75/50g 80g 75g 250g
Max. hardness of sample 940HV 940HV 1000HV 650HB
Preparation of surface
* Max. roughness depth Rt 10 m m 10 m m 2.5 m m 30 m m
* Average roughness Ra 2 m m 2 m m 0.4 m m 6.3 m m
Min. weight of sample
* Of compact shape 5kg 5kg 1.5kg 15kg
* On solid support 2kg 2kg 0.5kg 5kg
* Coupled on plate 0.  1kg 0.  1kg 0.  02kg 0.  5kg
Min. thickness of sample
* Coupled 3mm 3mm 1mm 10mm
* Min. thickness of layers 0.  8mm 0.  8mm 0.  2mm    -
Indentation of test tip
With 300 HV
* Diameter 0.  54mm 0.  54mm 0.  38mm 1.03mm
* Depth 24 m m 24 m m 12 m m 53 m m
with 600 HV
* Diameter 0.  45mm 0.  45mm 0.  32mm 0.  90mm
* Depth 17 m m 17 m m 8 m m 41 m m
with 800 HV
* Diameter 0.  35mm 0.  35mm 0.  30mm    -
* Depth 10 m m 10 m m 7 m m    -


SUPPORT RINGS: We offer a 12pc set of rings for testing concave or convex parts.
